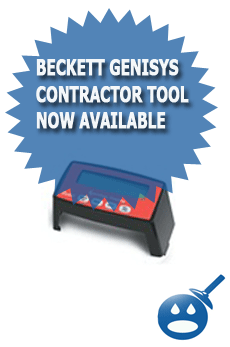

The Beckett GeniSys Contractor Tool is one of the most well received tools out in the field today. The new Beckett GeniSys Contractor Tool has now been made available to the technician.
This contractor tool was specifically made for usage on the Beckett GeniSys Control. It is important that you do not attempt to use this contractor tool on any other brands or types of controls. The Tool works by communicating the current cycles and the last 15 cycles for easy diagnostic treatment. Another benefit of the Beckett GeniSys Contractor Tool is that you can program it for pre-time as well as post time delay intervals, this would make the system a complete control tool.
Some users tips that technicians should be aware of are the Tool was created to gain access to the data via the COM port 1 or COM port 2 of the Beckett GeniSys Contractor Tool. These are 4 pin connectors. It is important to note that the installation of the cord which is position sensitive and has to be placed in the UP position on top when the tech is using the COM port 1. If the COM port 2 is being used the UP is to be positioned on the inner side of the control.
The Beckett GeniSys Contractor Tool is a 12VDC control COM port that has the accessibility located at the bottom of the control itself. The UP position has to be set towards the terminals. It is also noteworthy to mention that this specific tool is NOT designed to be used on any tool that is not a GeniSys Control or any other equipment. Non-intended use of this contractor’s tool can cause some damage to the tool or the control that is currently being tested. It could possibly change the control or the operation system and it will nit be covered under the Beckett Company warranty.
